Welding and Shop Equipment

Welding and Shop Equipment

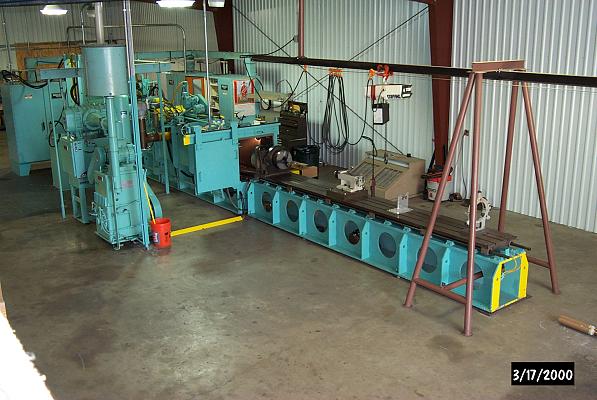

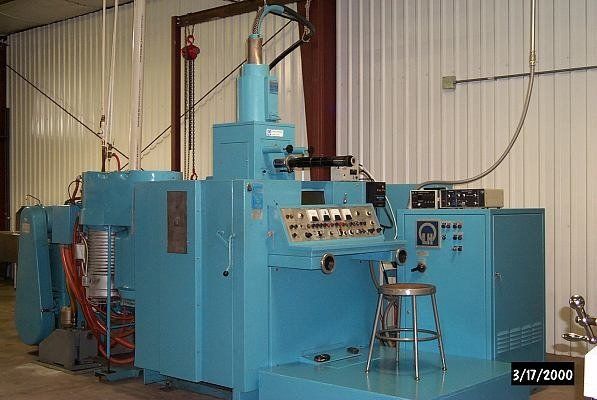

Sciaky Electron Beam Welder

  • CNC Controlled
  • Part lengths to 23.5 feet
  • Weld penetrations 4 - 6 inches
    (depending on type of metal)
  • Variable penetrations
  • Crane system for handling parts

Leybold Heraeus Electron Beam Welder

  • Chamber size 36" W x 42" H x 52" L plus extension
  • 24 chuck ferris wheel fixture
  • Singe chuck fixture
  • Horizontal rolling fixture
  • Penetration 0.001" to 1.00" plus (depending on type of metal)

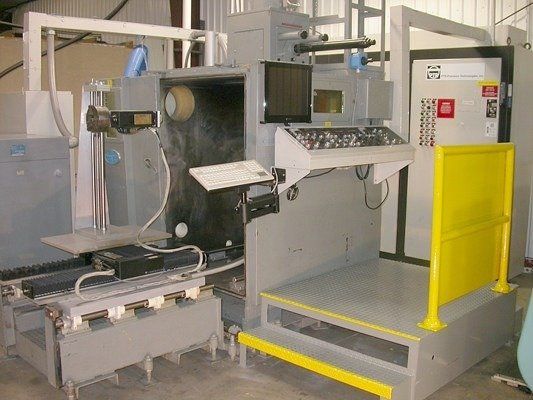

Leybold Heraeus Electron Beam Welder

  • PLC controlled precision welding

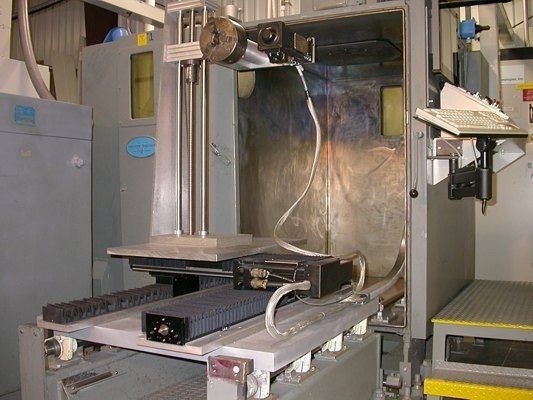

  • Computer controlled "X" - "Y" table plus "Z" axis for rotary welding
  • Deflection welding for parts as tall as 37 inches
  • Chamber size 36" W x 53" H x 55" L
  • Penetration 0.001" to 1.00" plus (depending on type of metal)

Additional Available Equipment

Spot Welder:

  • Hughes Spot Welder, 250 Watt-second, Model HRW 250B
  • Unitek table mounted pneumatic operated electrodes

Helium Leak Testing:

  • Helium leak detector Varian model 936-70SP with leak rate readings to 1 x 10 to the minus 8 cc/sec

Fixtures & Tooling

Fixture on Leybold Heraeus Welding Machine

This 24 Position indexing fixture has rotary selectable positions and chuck speed control. It is also tiltable from horizontal to vertical. This fixture rests on an X-Y table.

Call Electron Beam Technology, Inc. in Houston, TX, to discuss your welding project and needs today at 713-690-2326!
